Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Butterfly
  • Pressure: Max 10 bar
  • Power: Motorzied
  • Material: Stainless Steel
  • Temperature of Media: -28℃ - + 160℃
  • Media: Base
  • Port Size: DN 600-1800
  • Place of Origin: California, United States
  • Model Number: GRE 36/37
  • Brand Name: Neotecha
  • Application: General
  • Type: Double Flange
  • Character: Double Seal Elastic Seal
  • Applied Standard: ABS,NSF / ANSI STD 61
  • Design Standard: EN 593/API 609

Packaging & Delivery

Packaging Details According to the Standard of the Packing or upon the requirements' of customers
Delivery Time 45-60Days

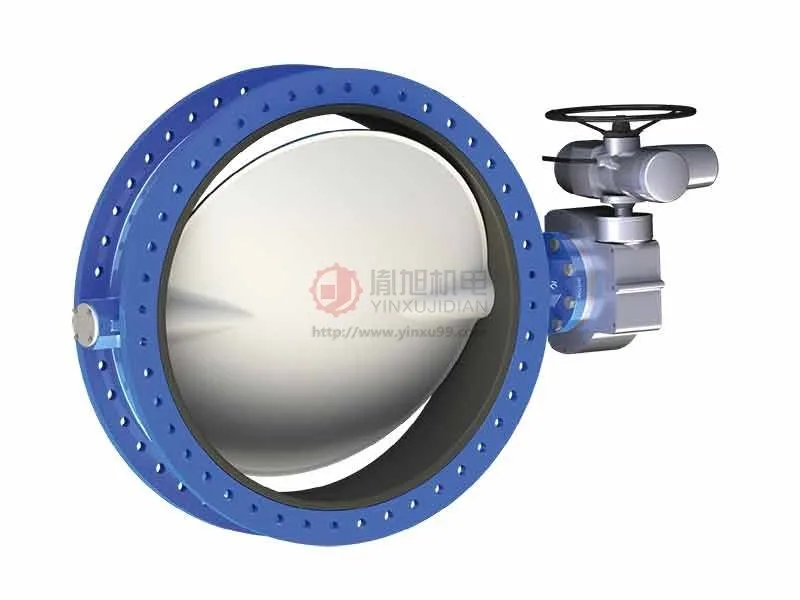

Product Description

Specification

Available Approvals: ABS, NSF / ANSI STD 61.

Designed according to EN 593 and API 609.

The extended fuselage neck allows the pipe to be insulated.

TECHNICAL DATAS FOR NEOTECHA BUTTERFLY VALVE

Valve
Type
Butterfly
135.5/2150
Classify
Soft Seated
637/1800
Suppliered Pressure
Max
10 bar

Main performance parameters
Main performance parameters
km/h
5.9/4.0
Travel speed (max. & min.)
°
<=35
Temperature
-28℃ - + 160℃

Hydraulic system
Hydraulic system
KPa
50.1
Size
DN
600-1800
Rate flow
KN
125

Main Features

1)The spindle seal exceeds the rated pressure of the valve and prevents leakage from the shaft into the atmosphere.

2)The second shaft seal provides backup safety.

3)The molded O-ring in the seat for the flange seal eliminates the need for the gasket.

4)Shaft seal prevents moisture from penetrating into the shaft area.

5)Double flange body design, face to face size, according to EN 558 series 20, API 609 and AWWA C504 short.

6)Top and bottom shaft bearings for optimized support and minimum friction and reduced torque.

7)The top bushing absorbs the actuator side thrust load.

8)Actuator flange conforms to ISO 5211.

9)The round polished disc edge provides a fully concentric seal, reducing torque, extending seat life and reducing closure.

10)All valves are in compliance with the Pressure Equipment Directive (97/23 / EU) Module B1 + D, CE Mark.

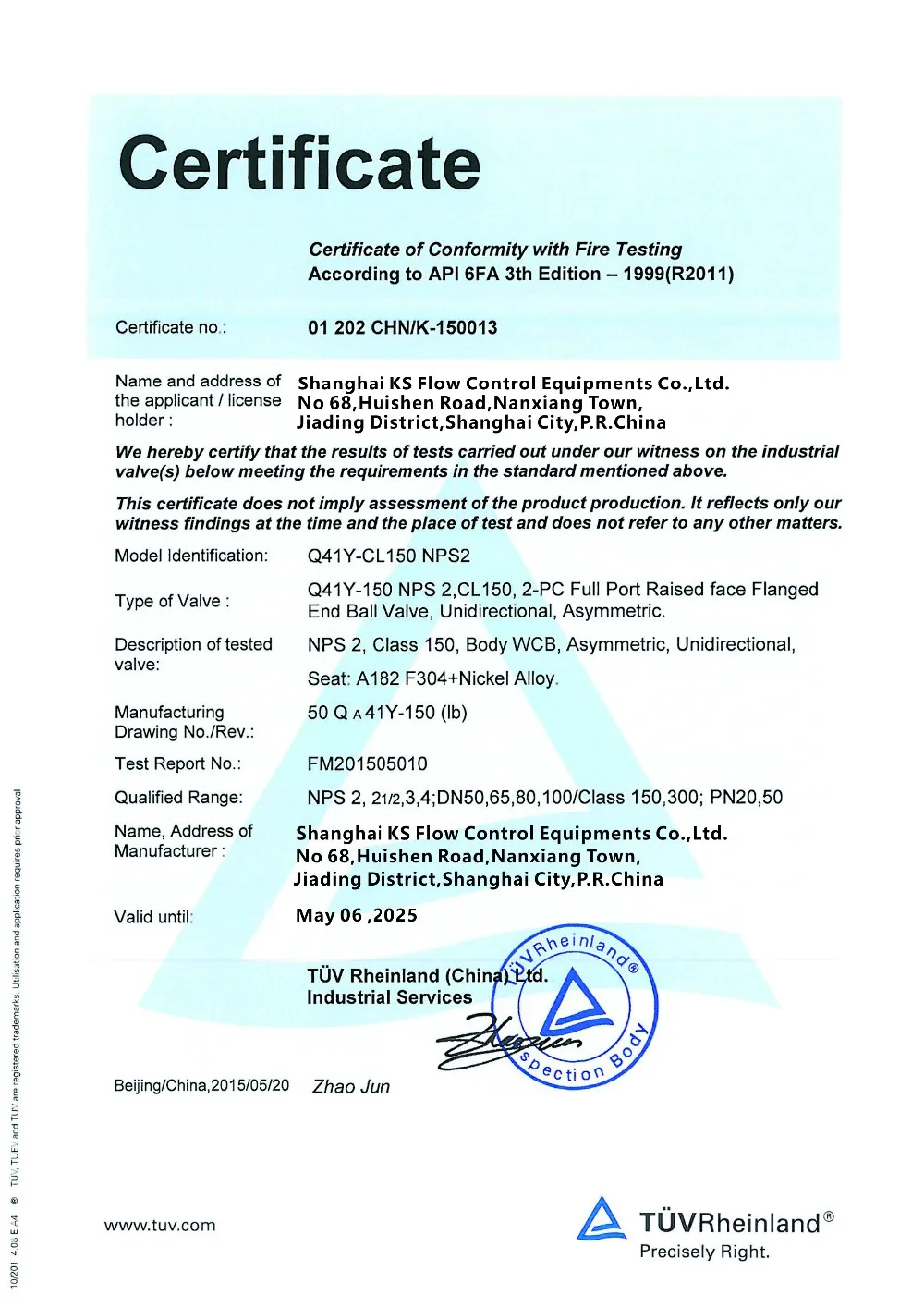

Certifications

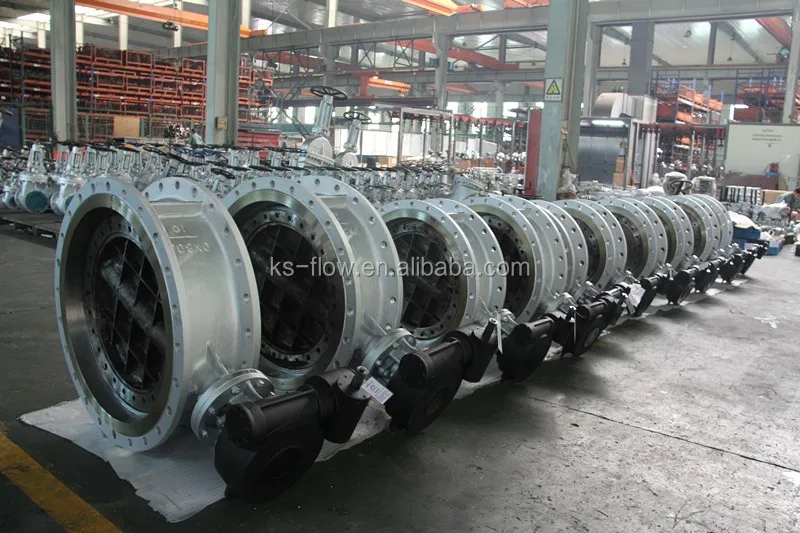

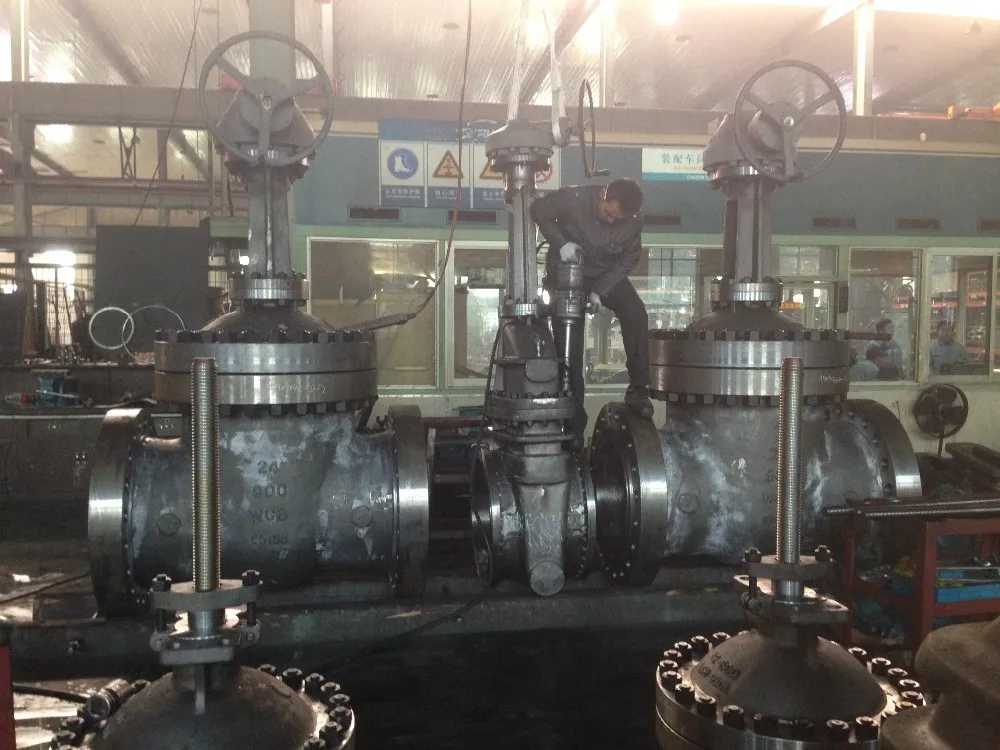

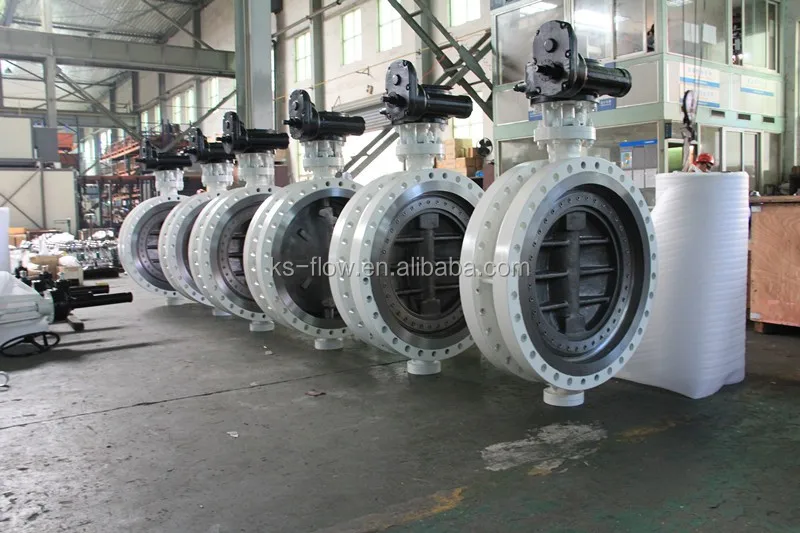

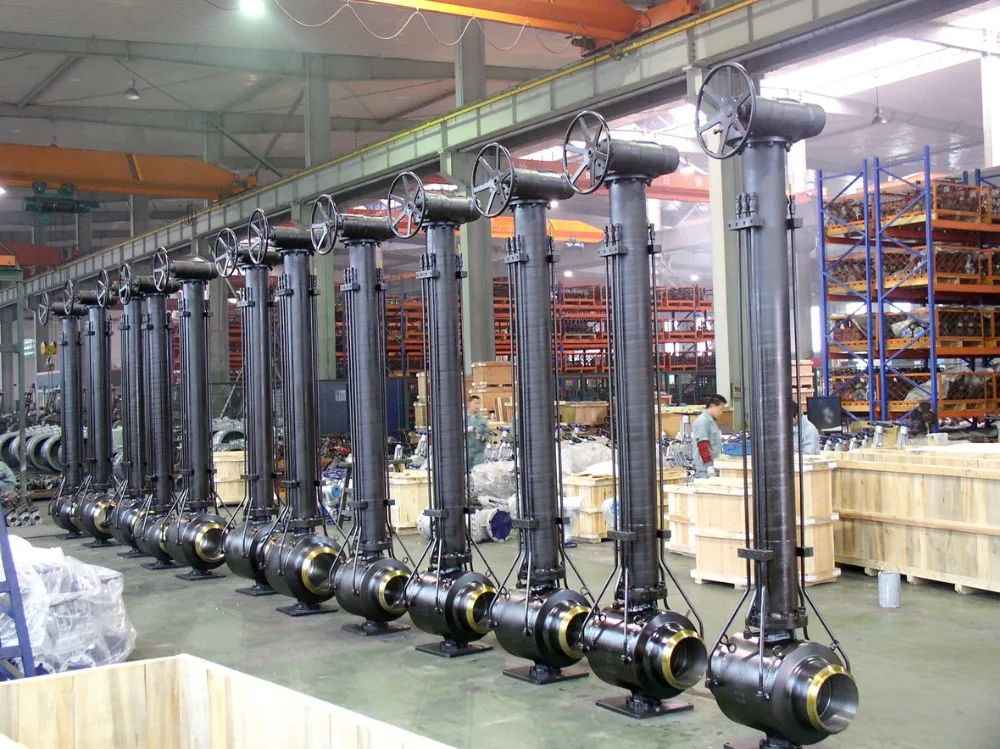

Detailed Images

Maine Achieverment

Main Achievement
Project: Petroleum Transportation Pipeline
Client: Sinopec
Year: 2008
Location: Beijing, China
Product: Soft Seated Ball Valve
Materials: WCB,CF8M,A105
Size: NPS1/2~NPS24
Rating: ANSI150lb ~600lb
Qty: 1356 pcs

Parkistan Cusomters

Project: TENDER ENQUIRY NO. PROC/FC/CB/PROJ/KPD-1522/2015
Client: OIL & GAS DEVELOPMENT COMPANY LTD.
Year: 2015
Location: Pakistan
Product: Gate, Check, Globe , Ball valves
Materials: WCB,CF8M, CF3M, F304, A105
Size: NPS1/2~NPS10
Rating: ANSI150lb ~800lb
Qty: 1560 pcs

Iraq

Iraq Customer
Project: Gas Capturing Project
Client: Shell Gas Iraq
Year: 2013
Location: Iraq
Product: Ball, Gate, Globe , Check Valves
Materials: WCB, F316L, CF8M
Size: NPS1/2~NPS14
Rating: ANSI150lb ~600lb
Qty: 325 pcs

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

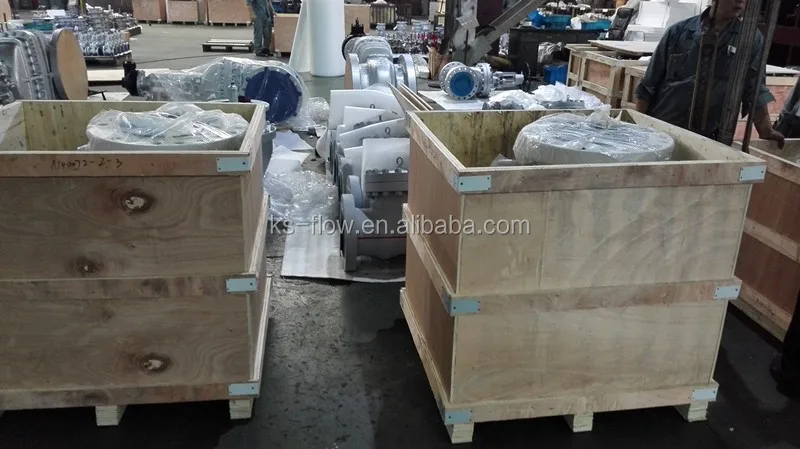

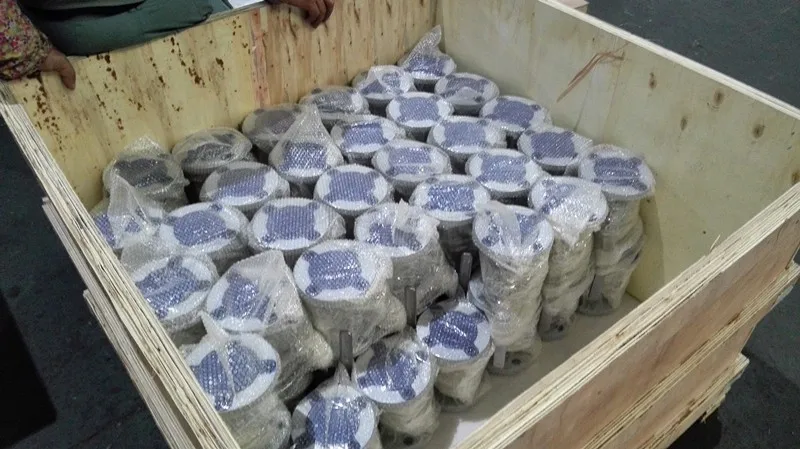

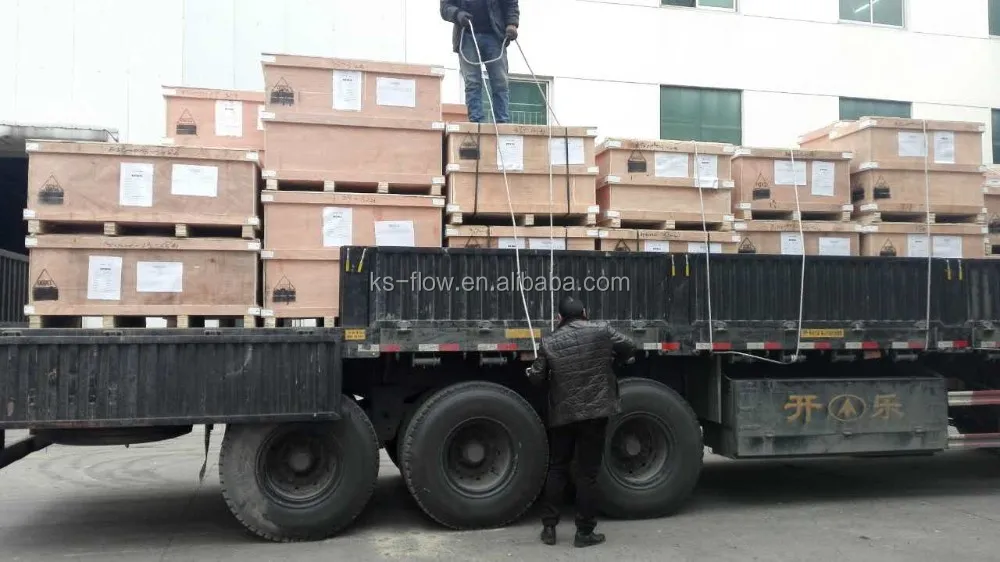

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
